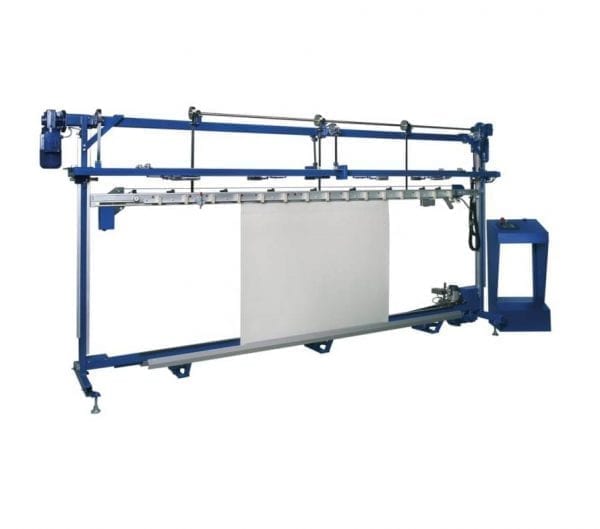

eisenkolb AGA 2300 – Vertical Curtain Height Cutting Machine

About eisenkolb AGA 2300 – Automated vertical curtain height cutting machine

• Machine is standard equipped with a multifunctional lifting beam to attach the curtain with spring clamps, via the lower hem or the curtain’s lead cord.
• Simple operation via the freestanding console with multilingual LCD touch screen.
• Adjustable cutting speed and extra tension function for optimal cutting result.
• Machine is custom-built and available in one of two versions:– Model 2300DP
  For work spaces with sufcient height. Up to a maximum width of 1135 cm / maximum height of 600 cm.– Model 2300DPX
  For work spaces with limited ceiling height; equipped with a second lifting beam for an additional lifting cycle. Up to a maximum width of 900 cm / maximum height of 600 cm.
• The machine is available with a wide range of options, including:
  – Triple lifting beam with pneumatic clamps.
  – Triple lifting beam with extended pneumatic clamps for lined curtains.
  – Fully automatic UV-marking for curtains and blinds.
  – Double lower hem rails for simultaneous cutting of curtain and lining (DP series only).
• Production capacity:
  60 – 70 Panels per hour*.
• Technical specifications:
  – Dimensions: made to order
  – Electric: 220 V, 1 phase, 1350 W
  – Air: 5 bar, 3 L per cycle
